Technical specifications e-VTS
Technical specifications e-VTS
Chassis:
- Vestergaard e-940/9601240/1260, 9 and 12 T
- Comfort package with heating and air conditioning
- Offered with diesel commercial chassis also
Electrical system:
- Battery, 40/60/70 kWh lithium-ion type battery, 400 V
| Model 1 | Model 2 |
| 40/60 kwh | 70 kwh |
| 6 kwh onboard charger | 22 kwh onboard charger |
| CEE32 inlet | Type 2 inlet |
Colour scheme:
- Chassis cabin and tank section: White colour (RAL9016)
Tanks:
- 3000 liter (2000 liter waste 1000 liter rinse water)
- 5000 liter, (3700 liter waste, 1300 liter rinse water)
- Automatic dosing system available
- Stainless steel tanks with 5 year warranty
- Tank level indicators
- Winterization package available
- Return-suction to prevent spilling
Vacuum System:
- Self-cleaning powerful vacuum pump
- Automatic flushing of waste tank when emptying
Basket:
- Elevating platform
- Horizontal movement of basket – up to 50 cm
- Max load – basket is rated for 205 kg.
- Proximity switches on upper two corners
- Side covers optionally
Norm compliance:
- European Machinery Directive 2006/42/EC – CE
- AHM 910, 913, 914, 915, 971
- ATA Specification for Ground Equipment Technical Data
- EMC 89/336/EEC

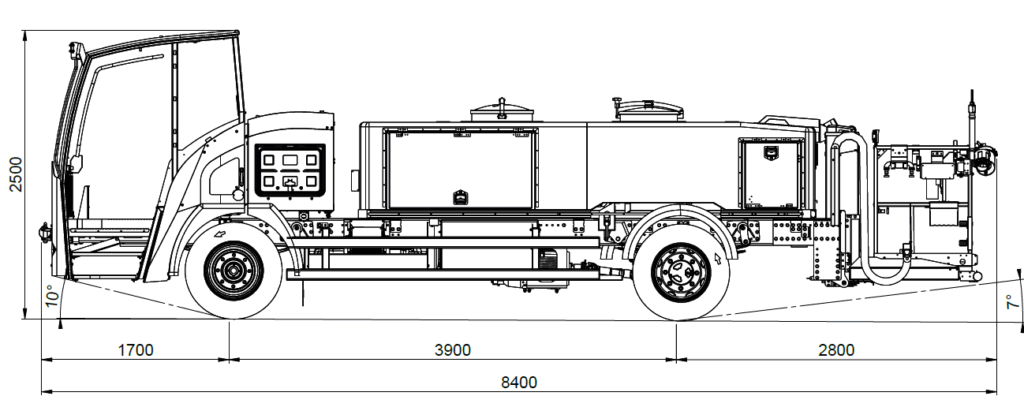

Dimensions (3000 liter version):
- Length 8.3 meters
- Width 2.5 meters
- Height 1.7 meters (tank and basket), 2.5 meters cabin
- Weight 4500/7500 kg
