Technical specifications Elephant e-BETA

Chassis:

• Volvo FE280 4×2 (Vestergaard spec.) EURO 6/Tier 5 engine
• I-shift gearbox

Electrical system:

• Battery, 40/60 kWh lithium-ion type battery, 360 V
• 6,9 kWh onboard charger.
• Electrically driven chassis in one-man operation
• Electrically driven spray and heating system

Driving modes:

• Normal / hydrostatic chassis driving in chassis cabin
• Electrical / hydrostatical driving in one-man operation mode from operator cabin

Colour scheme:

• Chassis cabin and tank section: White colour (RAL9016)
• Boom system: Light grey colour (RAL7040)
• Spray cabin and railing colour: Yellow colour (RAL1003)

Tank:

• 4000 liter water, 2000 liter type I, 2000 liter type II/IV
• Stainless steel tanks with 5 year warranty
• Tank 3 is thermally insulated from tank 2
• Pipes for bottom filling as standard capped with 2” threads

Heating system:

• 575 kW diesel heating capacity
• Batch heating system to ensure a quick start-up time
• Automatic fire extinguishing system
• Electrical heating available as option

Fluid systems:

• Separate tubing of water/type I mix and type II/IV fluid to the spray nozzle
• Full proportional mixing from 5-65%
• Double mix optionl

Performance – lift system:

• Fully proportional operation of boom and telescope system
• Closed heated and ventilated operator cabin design
• Max. rated load in cabin: 205 kg
• Boom construction sandblasted and quality coated corrosion class C4 high

Information display in chassis and operator cabin

• System status information interface for operator

Norm compliance

• European Machinery Directive 2006/42/EC – CE
• EN1915-1 through 4, EN12312-6
• AHM 905, 910, 913, 914, 915, 975
• SAE ARP1247, ARP1971, ARP4737
• AEA Recommendations for Deicing/Andiicing of Aircraft on Ground
• ATA Specification for Ground Equipment Technical Data
• EMC 89/336/EEC

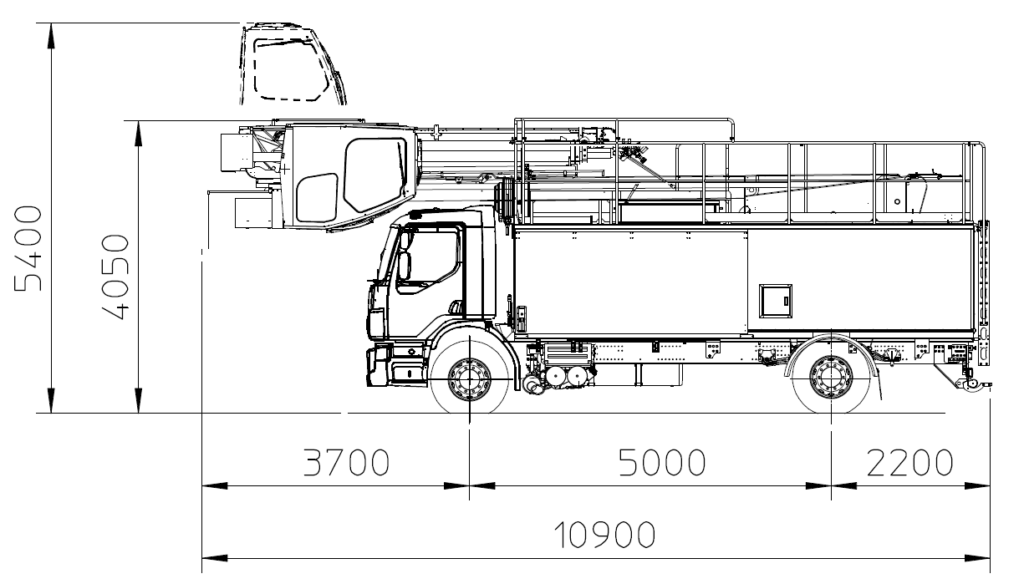

Dimensions

• Length 10,9 meters (36’)
• Width 2,5 meters (8,2’)
• Height 4.05 meters (13,7’)
• Maximum nozzle height 21 m 69’)
• Horizontal reach 12.2 meters (40’) over 350 degrees
• Max eye height 11.5 meters (38’)
• Max flow rate 250 l/m (67 gallons/m)
